Thrust Washer: The Unsung Hero of Rotating Machinery

Thrust washers, the unsung heroes of rotating machinery, are often overlooked but play a crucial role in ensuring smooth operation, reducing friction, and safeguarding components from excessive wear. Thrust washers are used in a wide range of applications, from industrial equipment to automotive engines, and their performance directly impacts the efficiency and reliability of the system they serve.

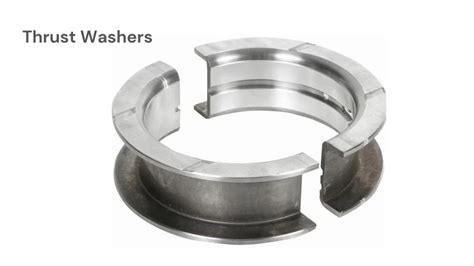

Understanding Thrust Washers

In essence, a thrust washer is a thin disk that separates two rotating surfaces and prevents metal-to-metal contact. It typically consists of a bearing material, such as babbitt, bronze, or Teflon, that is bonded to a metal backing plate.

Thrust washers are designed to withstand high axial loads, which are forces that act perpendicular to the axis of rotation. These loads can be caused by various factors, including gravity, centrifugal forces, or external forces applied to the rotating assembly.

Functions of Thrust Washers

Thrust washers fulfill several important functions:

1. Reducing Friction: Thrust washers introduce a low-friction surface between rotating components, thereby minimizing friction and energy losses.
2. Absorbing Axial Loads: They absorb axial forces and distribute them evenly over a larger area, preventing localized stress concentrations and damage.
3. Preventing Wear: By separating metal surfaces, thrust washers prevent direct contact and wear, extending the lifespan of components.
4. Aligning Components: Thrust washers can help maintain proper alignment of rotating components, reducing vibration and ensuring smooth operation.

Types of Thrust Washers

Thrust washers come in various types, each designed for specific applications:

• Plain Thrust Washers: These are simple, uncoated washers that are typically used in low-load applications.
• Coated Thrust Washers: These washers have a thin layer of a dry lubricant, such as molybdenum disulfide, applied to the bearing surface, enhancing friction reduction and wear resistance.
• Grooved Thrust Washers: These washers incorporate radial or spiral grooves on the bearing surface, which help distribute lubricants and improve load capacity.
• Segmented Thrust Washers: These washers consist of several segments that allow for easier installation and adjustment, making them suitable for high-speed applications.

Materials Used in Thrust Washers

The choice of material for thrust washers depends on several factors, including the load capacity, operating temperature, and specific application. Common materials include:

• Babbitt: A soft, white metal with good conformability and load-carrying capacity.
• Bronze: A strong, wear-resistant material suitable for high-load applications.
• Teflon: A non-metallic material with excellent friction-reducing properties and temperature resistance.
• Steel: A durable material used in cases where high strength and stiffness are required.

Applications of Thrust Washers

Thrust washers find applications in various industries:

• Automotive: Thrust washers are used in engines, transmissions, and differentials to reduce friction and prevent wear.
• Industrial Machinery: They are essential components in pumps, compressors, and gearboxes, absorbing axial forces and enhancing performance.
• Construction Equipment: Thrust washers are used in excavators, cranes, and bulldozers to handle heavy axial loads.
• Aerospace: Thrust washers are employed in aircraft engines and landing gear to manage axial forces and reduce friction.

Effective Strategies for Using Thrust Washers

• Proper Selection: Carefully consider the load capacity, operating conditions, and application requirements when selecting a thrust washer.
• Lubrication: Use appropriate lubricants to minimize friction and enhance the performance of thrust washers.
• Regular Inspection: Monitor thrust washers regularly for wear or damage to ensure optimal performance and prevent premature failure.
• Proper Installation: Ensure proper installation of thrust washers to prevent misalignment, which can result in increased wear and reduced efficiency.

Tips and Tricks

• Use a thrust washer calculator to determine the optimal size and thickness for your application.
• Experiment with different bearing materials to find one that best suits your specific needs.
• Lubricate thrust washers thoroughly before installation to promote smooth operation and extend their lifespan.
• Consider using segmented thrust washers for applications that require disassembly or adjustment.

Pros and Cons of Thrust Washers

Pros:

• Reduced friction and wear
• Absorption of axial loads
• Improved alignment of components
• Long lifespan with proper lubrication
• Cost-effective solution

Cons:

• May require specialized knowledge for selection and installation
• Can fail if subjected to excessive loads or misalignment
• May introduce additional weight and space requirements

FAQs

1. What is the difference between a thrust washer and a plain bearing?
   - Thrust washers are specifically designed to handle axial loads, while plain bearings are designed for radial loads.
2. Can thrust washers be used in both directions?
   - Yes, some thrust washers are designed to handle axial loads in both directions.
3. How often should thrust washers be replaced?
   - Replacement intervals depend on operating conditions and load capacity, but regular inspection is recommended.
4. What are the signs of a worn thrust washer?
   - Excessive vibration, noise, and reduced performance can indicate wear or damage.
5. How can I prevent thrust washer failure?
   - Proper selection, lubrication, and regular inspection are crucial for preventing premature failure.
6. What is the cost of a thrust washer?
   - The cost varies depending on the size, material, and complexity of the thrust washer.
7. Where can I buy thrust washers?
   - Thrust washers can be purchased from industrial suppliers, bearing distributors, and online retailers.
8. What are the best thrust washer manufacturers?
   - Reputable manufacturers include SKF, NSK, Timken, and FAG.
